Sonavision Mercury Sonar Images Survey of three 9.15m x 7.32m (30' x 24') jetty caissons in zero visibility |
|||
 |
 |
 |
 |
|

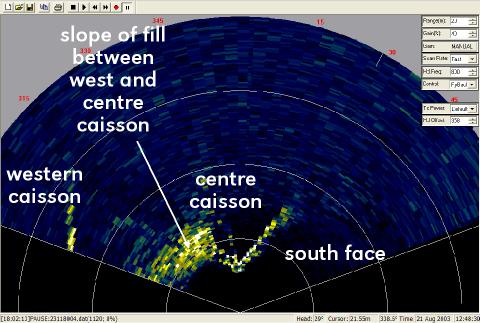

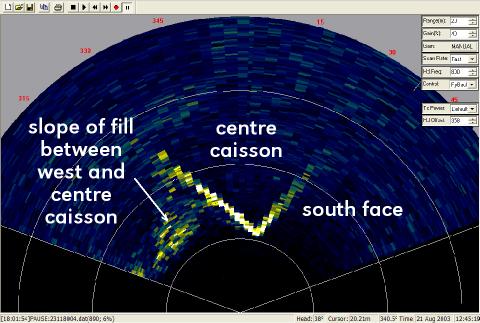

1 of 4 during descent showing advance of fill between caissons |
2 of 4 during descent showing advance of fill between caissons | 3 of 4 during descent showing advance of fill between caissons | 4 of 4 during descent showing advance of fill between caissons (distortion is a result of the ROV being in motion during scan) |
 |
 |
 |
 |

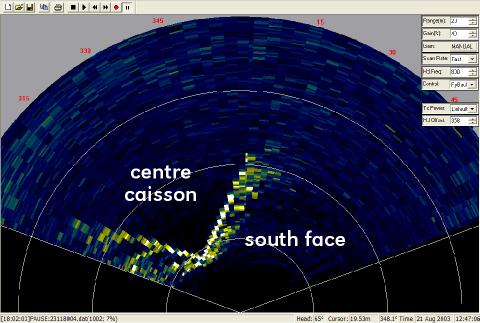

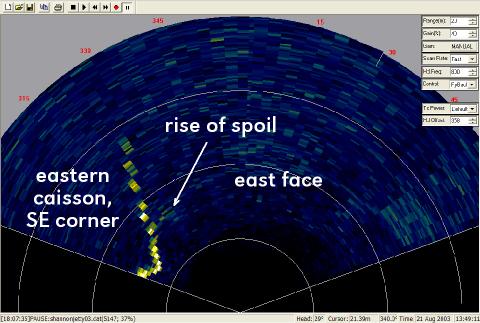

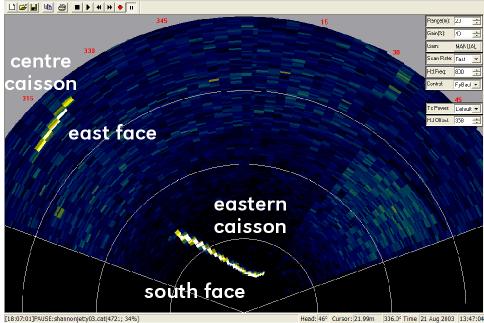

| 1 of 2 showing two oblique faces; mid-water | 2 of 2 showing two oblique faces; mid-water |

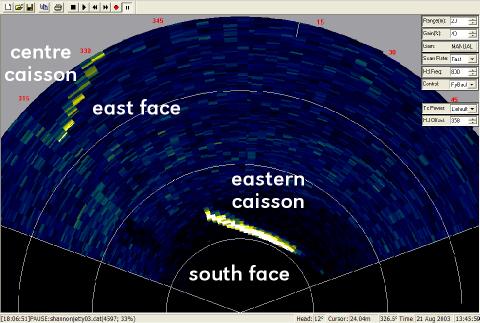

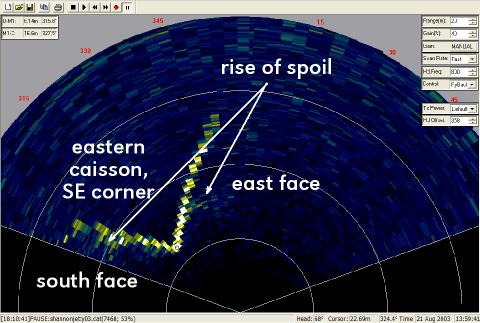

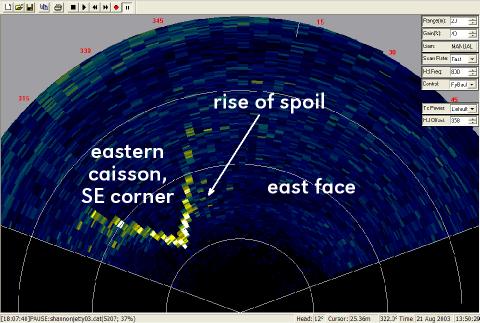

1 of 3 investigating level of fill adjacent to caissons
|
2 of 3 investigating level of fill adjacent to caissons |
 |
 |
 |
 |
|
3 of 3 investigating level of fill adjacent to caissons
|

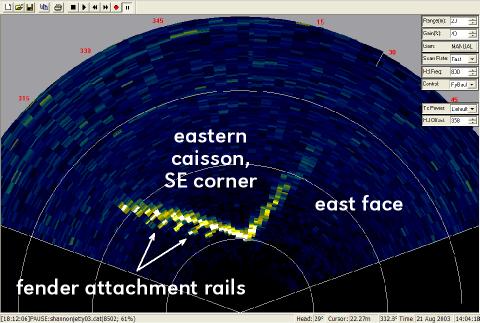

detail of fender attachment rails taken mid-water
|

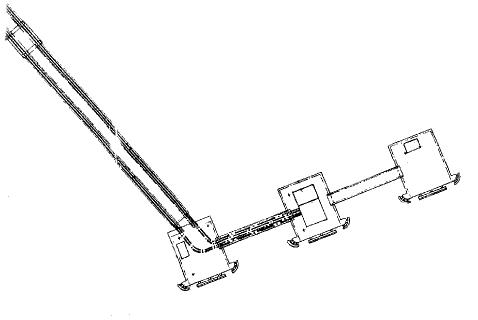

plan view of jetty with three caissons
|

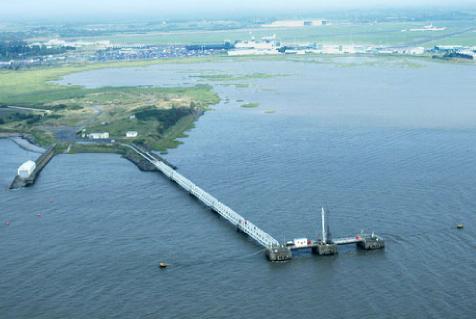

aerial photo of jetty |
| Concrete Pier | Test Tank | ||
 |
 |
 |
 |

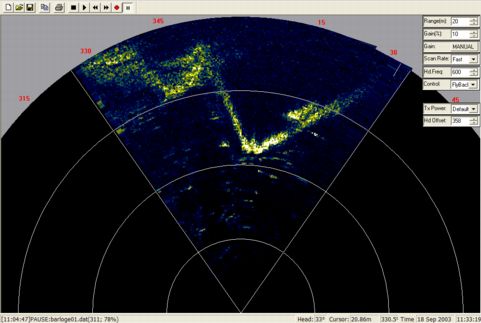

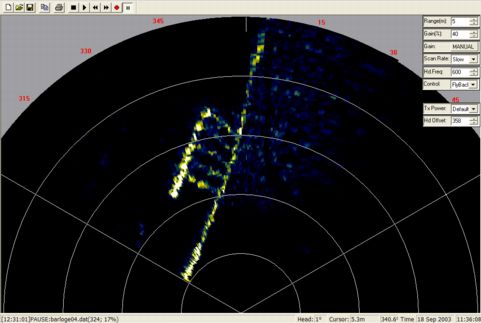

| corner of concrete pier; 20 m range | detail
of steps on concrete pier; 5 m range |

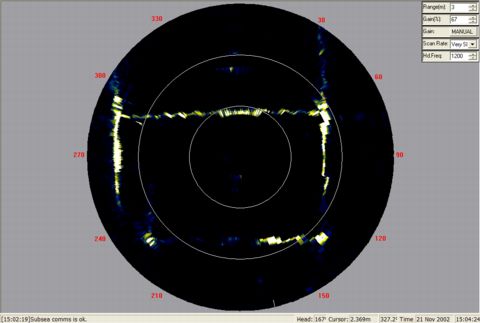

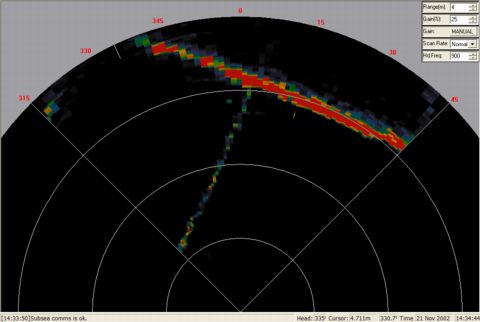

corner of tank during initial test at 4 meter range | full surround of tank at 3 meter range |
